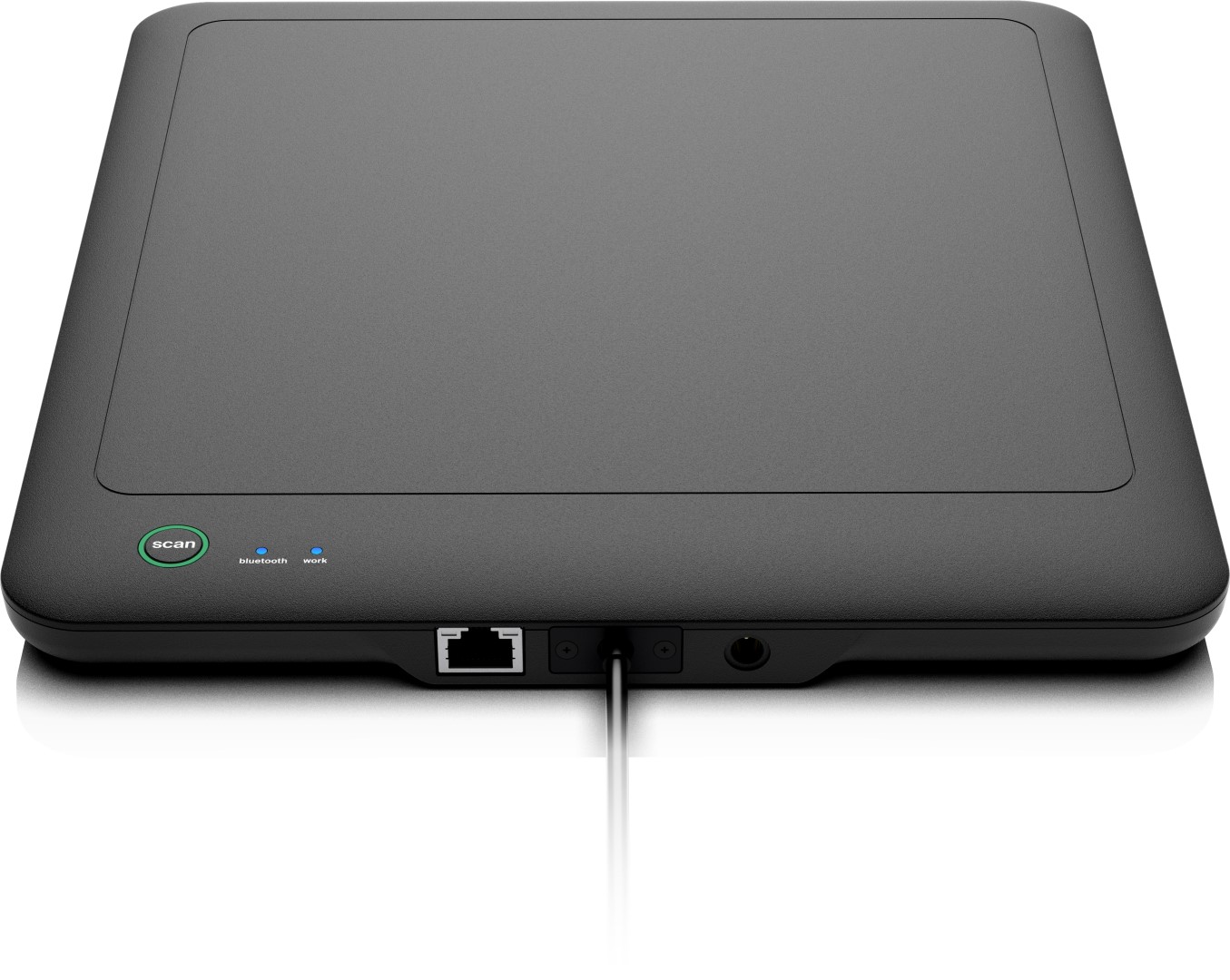

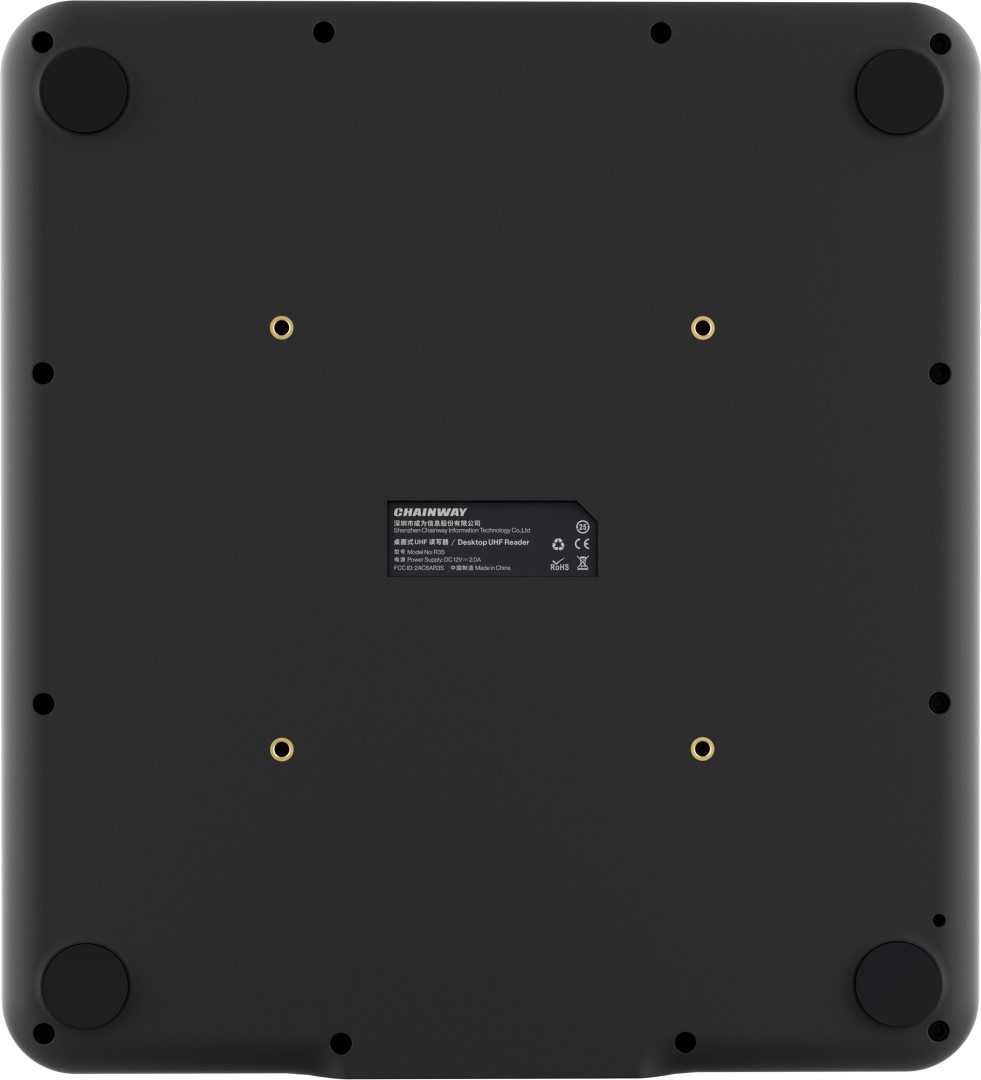

Chainway R3S Desktop RFID Reader

Chainway R3S Desktop RFID Reader
Chainway R3S Desktop RFID Reader
Chainway R3S Desktop RFID Reader (1)
Compact in Form. Flexible in Deployment. Built for Your Setup.
In stock 2 pcs
Transport companiesWednesday 21. October
413,60 EUR 500,40 EUR incl. VAT
EAN8594178699026CodeR3SWarranty24 months
Support Windows/Android/IOS • Bluetooth 4.0
R3S Desktop RFID Reader
The Chainway R3S Desktop RFID Reader features a compact all-in-one design with versatile connectivity for flexible deployment. Powered by the Impinj E Series chipset with Gen2X support, it delivers stable and accurate tag reading through optimized anti-collision algorithms and 30-step adjustable output power. Supporting Type-C, Ethernet, and Bluetooth 5.0, and compatible with Windows, Android, and iOS, the R3S is suitable for desktop use or kiosk integration in retail checkout and high-value asset management.
R3 Desktop RFID Reader

RFID Short Range UHF scanning ( < 100cm) SDK Support Windows/Android/IOS Bluetooth Bluetooth 5.0 Feature Support USB, BT communication with PC
Features
Feature
Support USB, BT communication with PC
SDK
Support Windows/Android/IOS
Functions
RFID
Short Range UHF scanning ( < 100cm)
Bluetooth
Bluetooth 5.0



In many technical parameters CHAINWAY is comparable to other brands in the same class or the differences are not very significant from the user's point of view. However, the main advantage is the fast local sales and technical support and service representation in the Czech Republic (since 2013) with the possibility of free loan of spare equipment for the period of repair. Due to the local warehouse, we also have a number of models in stock for immediate dispatch and offer free loan of equipment for development and compatibility testing with existing applications. Another of the advantages of CHAINWAY equipment over other brands is the cost of accessories, which significantly increase the purchase price of some competing brands, although the price of the device itself may be lower than CHAINWAY.

Barcode scannerwithout barcode reader
Operating systemWithout OS
RFIDUHF (865 MHz ~ 868 MHz)
ManufacturerCHAINWAY
Physical Characteristics
Dimensions R3
255 mm × 235 mm × 18 mm
Weight
650 g / 22.93 oz.
Port
Type C USB
Power Supply
Type C USB
Indicator LED
Power
BT connection status
Working (flash when scanning tags)

Developing Environment
SDK
Android / IOS  / Windows Supported

UHF RFID
Frequency
865-868 MHz, 920-925 MHz, 902-928MHz
Protocol
EPC global Class 1  GEN2 / ISO18000-63 RFID
Output Power
1dBm-30dBm, 1dBm (Stepper)
Read Range
do 100cm

User Environment
Operating Temp.
-20 to 50°C
Storage Temp.
-40 to 70°C
Humidity
5% - 95%RH (non condensing)
Sealing
IP54

Communication
Bluetooth
Bluetooth 5.0
Type C USB
USB 2.0 with a transmission rate of 12Mbit/s
Discussion about product
Have a question? Are you interested in specific detail? Ask us.
Ask a question
New questionYour nameyour e-mail(E-mail will not be published)your phone(Phone will not be published)TitlePost textAsk
Your nameyour e-mail(E-mail will not be published)Post textAdd replyyour phone(Phone will not be published)
Files
R3_SDK
